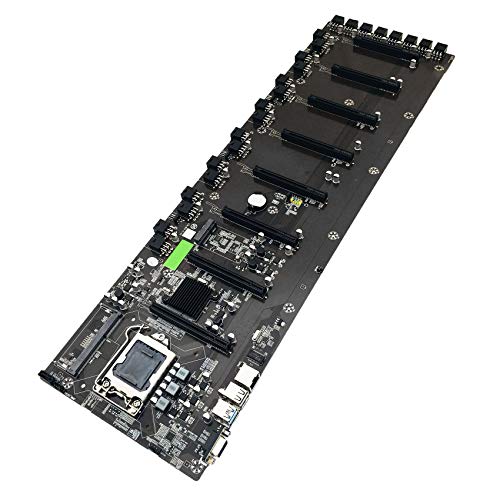

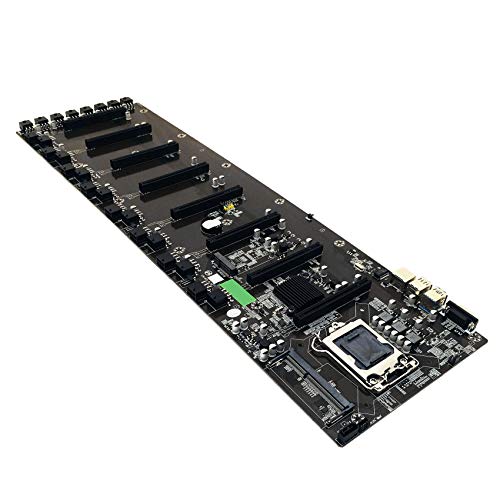

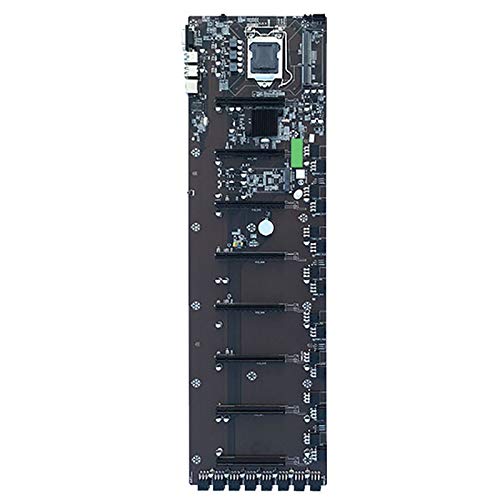

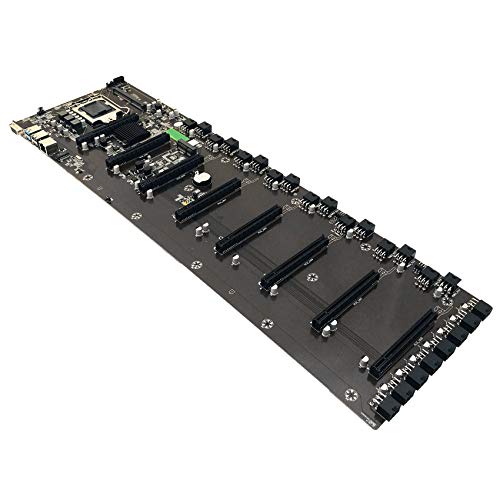

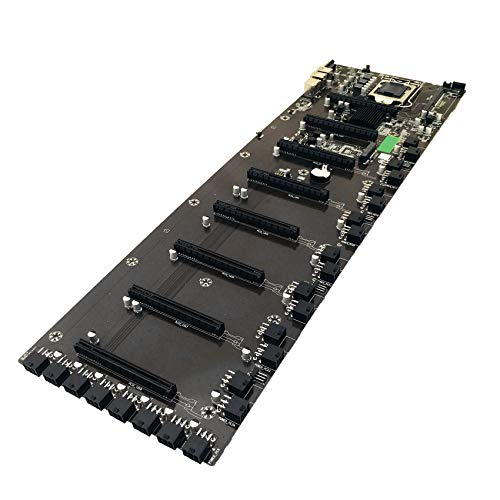

tellaLuna BTC-B75 Miner LGA 1155 Motherboard CPU for/Pentium/Celeron with 8 Card Slot for RX/GTX10/GTX20 Series

tellaLuna Number of CPUs supported: 1
Memory specifications: Memory type DDR3 1333/1600/1866 MHZ up to 8G
Memory slot 1xnotebook DDR3 (both high and low voltage are available)
Expansion slot:
8X PCI-E X16 slot (slot pitch 65MM, clearance 55mm)
4X SYS _FAN socket (90 degrees)
1X DDR3L memory slot
1X SATA3 interface
1X MSATA interface
1X JPWR_SATA1 power supply interface
24X6p square power input and output port
1X 4PIN CPU fan interface (in-line)

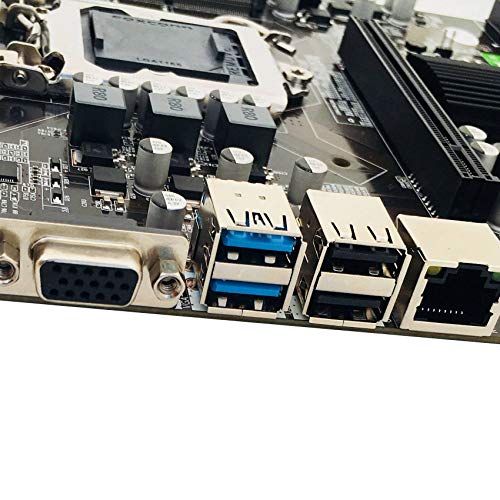

I/O interface:
2X USB 3.0 interface
1X RJ45 network interface
1X VGA output
1X POWER SW switch
1X CMOS reset pin
card slot spacing: card slot spacing 65mm
card support type: common mining cards are supported, such as: RX series, GTX10 series, gtx20 series, gtx30 series, etc.
Colour: black
Material: PCB
Size: 598 x 180mm

Package Contents:
1 x Motherboard

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Voer het modelnummer hierboven inom zeker te weten dat dit past.
Network card chip: RTL8111F (Gigabit)
Processor specifications: CPU platform Core 2nd and 3rd generation/Pentium/Celeron
Main chip: B75
Name: jhy_B75 8P-BTC motherboard
CPU socket: LGA 1155
